Top Reasons to Choose Aluminum for Your Grinding Dust Shroud

Introduction

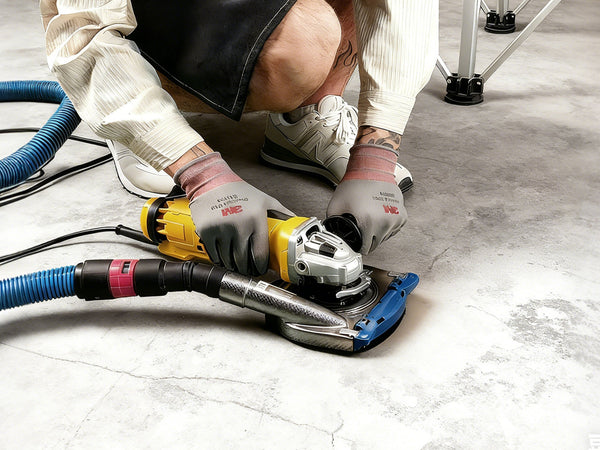

Surface grinding concrete, mortar, and masonry is one of those tasks that looks simple until you try doing it cleanly—especially indoors or in occupied spaces. A grinder throws fine dust in every direction, visibility drops fast, and even a short pass can leave a “fog” that settles into HVAC returns, finishes, and adjacent rooms. That’s why a well-designed aluminum grinding dust shroud has become a practical, jobsite-proven way to keep grinding controlled, predictable, and safer.

In this ultimate guide, you’ll learn what actually determines dust capture (airflow + seal + technique), how fitment systems work across grinders, and when aluminum makes the biggest difference. Along the way, we’ll use HERZO’s dust-control ecosystem—built around structural reliability, optimized airflow, and clear compatibility information—to illustrate practical setups you can replicate on your next renovation or surface-prep job.

What You Need to Know

Material Choice: Aluminum vs. Composite Housings

An aluminum dust shroud housing behaves differently than composite or thin plastic under load. During grinding, you’re not only managing rotational force—you’re also dealing with side pressure, micro-impacts, vibration, and heat cycling at the skirt edge. A composite shroud can work for light duty, but once the housing flexes, the brush ring no longer sits evenly, gaps open, and dust escapes in bursts. Aluminum’s stiffness helps maintain a consistent structure so the shroud’s seal and airflow channel remain stable from the first pass to the last.

Another practical factor is longevity under real handling. Shrouds get dropped, dragged, leaned on, and tossed into gang boxes. Aluminum tends to survive this “jobsite reality” with fewer cracks and fewer tiny fractures around the collar and port—areas that become leak paths over time.

Dust Capture Basics: Airflow, Seal, and Brush-Ring Behavior

Dust capture is not magic—it’s fluid dynamics plus contact mechanics. A shroud works when your vacuum creates negative pressure inside the housing, drawing airborne fines into the port before they escape. That requires two things: a reasonably airtight boundary at the surface (the brush ring/skirt) and a clear path for air to move through the housing without collapsing or choking.

Brush rings matter more than many users realize. If bristles are bent unevenly, packed with slurry, or lifted off the surface by a warped housing, you get “short-circuit airflow”: the vacuum pulls clean air from the easiest gap instead of pulling dusty air from the grinding zone. Aluminum helps here because it keeps the skirt plane consistent.

Aluminum Advantage: Durability Under Load

Aluminum earns its keep when grinding becomes continuous, forceful, and repetitive. Under heavy pressure (for example, flattening high spots on concrete patch), a shroud experiences torsion and side loading. If the housing flexes, the brush ring loses uniform contact and the dust plume escapes in pulses. With an aluminum grinding dust shroud, the rigid structure resists deformation, so the skirt stays flatter to the surface.

Durability shows up in smaller ways too. A stable housing helps keep the wheel centered and reduces the chance that the skirt rubs the cup wheel during aggressive angle changes. This prevents heat buildup and premature brush ring failure.

A strong example is the HERZO Aluminum Dust Shroud 180mm (7”) for Angle Grinders (model HED60V). It’s built with an aluminum housing, brush bristle seal, and a flip-up design for flush grinding. The published interface specs make it easier to dial in a repeatable, professional setup rather than relying on trial-and-error.

HERZO Aluminum Dust Shroud 180mm (7") for Angle Grinders

$57.99

Add to Cart

View Details

Airflow and Extraction Stability

A dust shroud that “fits” can still fail if the airflow path is unstable. Capture depends on maintaining a predictable internal channel. When housings flex, airflow becomes turbulent and short-circuits.

Aluminum supports airflow stability in two ways:

1. It holds the geometry of the shroud body so the air channel doesn’t deform.

2. It helps keep the brush ring evenly loaded against the surface.

The result is more consistent extraction from start to finish, which improves visibility and often leads to cleaner, more uniform grinding because you can actually see your scratch pattern.

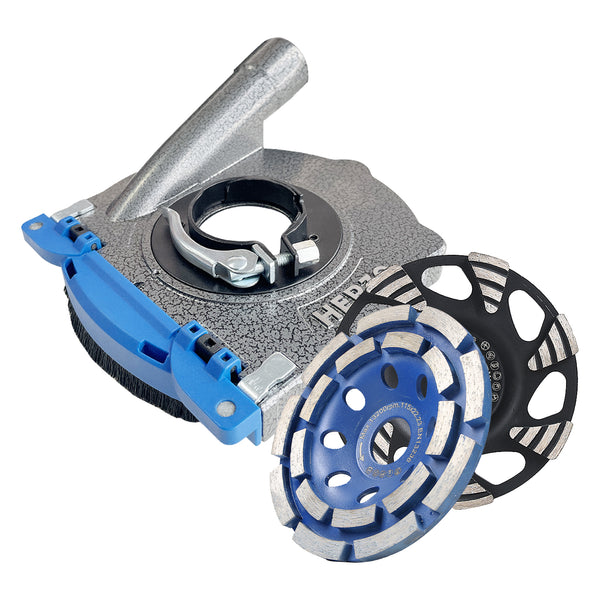

If you want a practical, compact setup for common indoor grinding, the HERZO 125mm Aluminum Grinding Dust Shroud Kit + 115mm Double‑Row & 125mm Turbo Cup is designed around dust-controlled surface grinding on concrete and stone. It’s a good example of a system approach: stable shroud + controlled extraction + the right grinding interface.

HERZO 125mm Aluminum Dust Shroud Kit + 115mm Double‑Row & 125mm Turbo Cup

$79.18

Add to Cart

View Details

Edge Work and Wall-Adjoining Passes

Most surface-prep jobs are won or lost at the edges. Frustration comes from wall lines and corners where you need to keep the wheel close without gouging or losing dust capture.

A flip-up/open-edge design directly addresses this. By allowing the nose section to open, the grinder can approach a vertical surface closely while keeping the remainder of the skirt sealed. HERZO integrates this concept into multiple shrouds, such as the 7-inch aluminum model and the 125mm aluminum kit, both featuring flip-up edge noses for close-to-wall work.

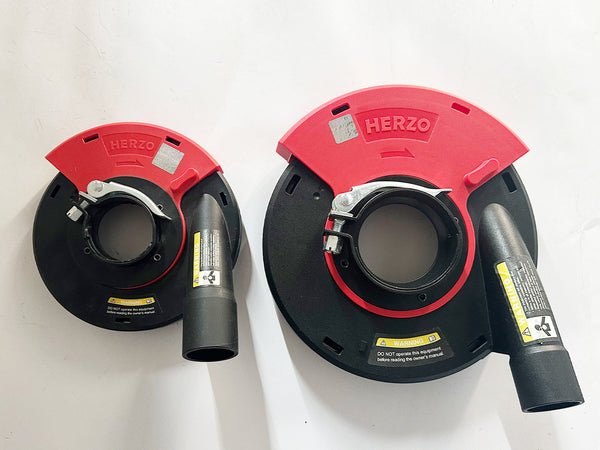

Choosing the Right Size: 5-Inch vs 7-Inch

Size selection is where many dust-control setups go sideways. You need to match the shroud diameter class to the grinder and the coverage you need.

• 5-inch-class (125mm): The most flexible option. Fits many 4-1/2”–5” angle grinders, works well in rooms with obstacles, and is easier to maneuver on walls and stairs.

• 7-inch-class (180mm): About coverage and stability. Used for bigger floor areas, longer passes, and high-efficiency leveling.

Practical rule: If you’re routinely grinding large slabs (garages, basements), a 7-inch aluminum shroud improves throughput. For mixed renovation work with edge access and tight spaces, a 125mm setup is the better daily driver.

Decision Framework Table

Best Practices and Pitfalls

Best Practices

1. Seat and clean the brush ring: Inspect bristles for wear or debris before every room.

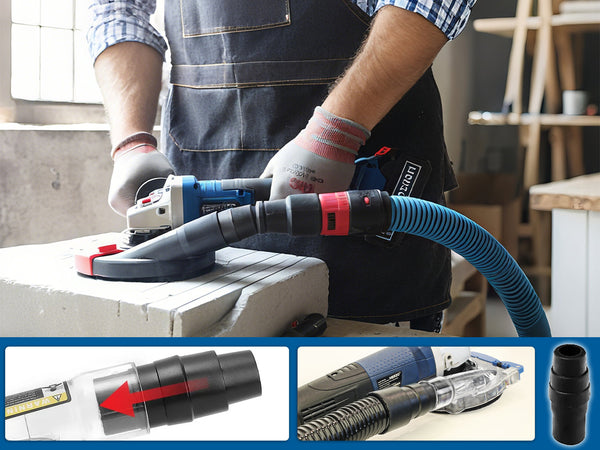

2. Treat airflow like a spec: Keep hose runs straight and check for leaks. NIOSH emphasizes maintaining adequate airflow to reduce silica exposure.

3. Match shroud height: Ensure the wheel has clearance without forcing the housing to ride on the surface.

4. Use edge features intentionally: Keep the shroud closed during open-area passes to maximize containment.

Common Pitfalls

1. Running “dry” without vacuum: Even brief dry grinding floods the area with hazardous silica dust.

2. Mismatching sizes: A shroud that causes rubbing will generate heat and shred brush rings.

3. Forcing edge grinding with gaps: Only open the nose when actually at the wall.

4. Ignoring fitment: Confirm neck diameter, mount type, and flange thickness—don't rely solely on "universal" claims.

FAQs

Conclusion

Choosing an aluminum grinding dust shroud is fundamentally about keeping your dust control system stable. The housing resists deformation, the brush ring holds a consistent seal, and airflow geometry stays predictable. To get the best results, match the shroud size to your grinder, confirm fitment measurements, and prioritize edge-access features if wall runs are common in your work.
