Cutting dust shrouds matter because dust clouds hide your chalk line, slow progress, and raise exposure risks in confined spaces. If you routinely saw concrete, masonry, or stone with an angle grinder, a well-matched shroud maintains visibility at the line of cut, stabilizes your feed, and captures debris where it’s generated. In 2025, silica compliance remains in focus across the U.S., with guidance emphasizing engineered controls like local exhaust ventilation and source capture during dry cutting operations.
So which cutting dust shrouds make straighter, cleaner cuts without constant cleanup? Start by matching the shroud to your grinder size and the type of cut you run most—scoring, long channels, or twin‑blade chasing for utilities. Then look at extraction path and guidance: front‑extraction noses and roller guides can dramatically improve tracking accuracy, while transparent upper covers keep the cut line visible. As tool makers refine housings and interfaces, a clear, durable body with airtight connections now signals a professional‑grade solution rather than a marketing extra.
Top Cutting Dust Shrouds for Precise Concrete Cuts

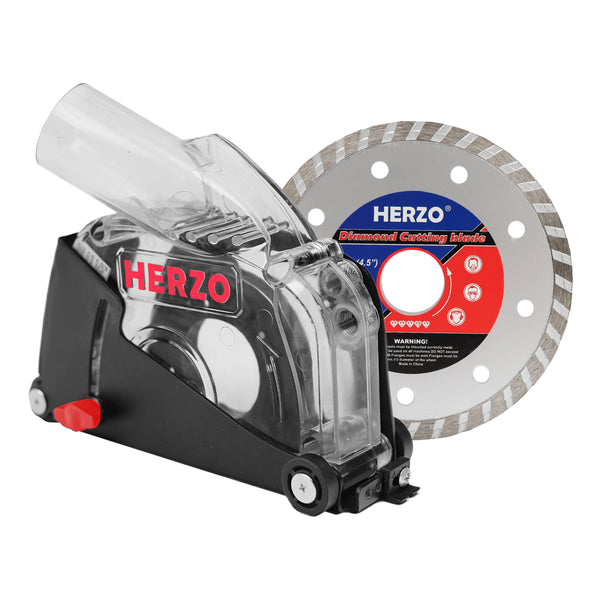

1. HCT45X Transparent Cutting Dust Shroud 125mm
For precise line cuts indoors, the HERZO HCT45X pairs a clear top cover with a front‑extraction port to capture dust right where the blade enters. That clear cover keeps your scribe visible through the pass, and a roller base improves straight tracking across long runs. A flip‑up front section lets you approach walls and edges more closely, while adapters help the shroud seat firmly on most 4‑1/2”–5” angle grinders. Built from an AS + PP composite, the housing balances durability and weight for extended sessions on concrete, masonry, and stone. Pack‑in items include a 115 mm diamond cutting blade and port adapter so you can connect to a dust extractor and get to work immediately.
-
Application focus: Precision straight cuts and score lines indoors where visibility and cleanliness are critical
-
Key technical features: Clear top cover; front extraction port; roller guidance; flip‑up front end
-
Supported blade size: 115–125 mm (4.5”–5”)
-
Tool neck compatibility: Approx. 40–50 mm with included adapters; quick‑mount design
-
Material and build: AS + PP housing for impact resistance with manageable weight
-
Visibility tools: Clear lid for line‑of‑cut observation during scoring and channeling
-
In the box: Dust shroud, 115 mm diamond cutting blade, adapter/fastener set, dust port adapter, wrench

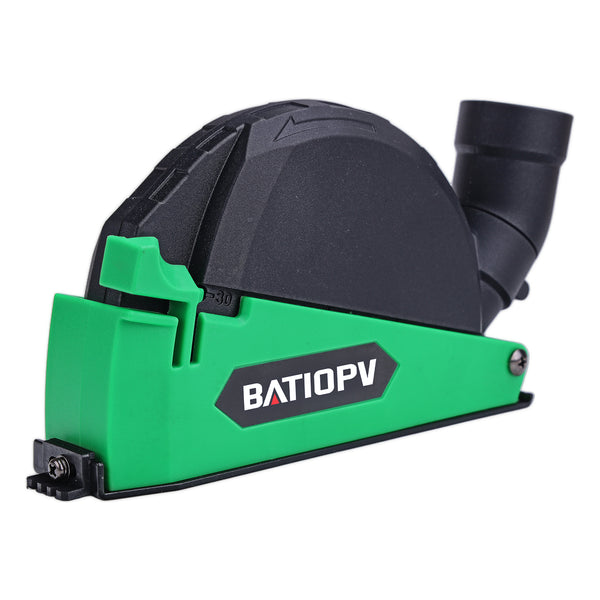

2. Green Cutting Dust Shroud 5” Front Extraction Roller Guide
When straight channels and scored lines are the priority, the BATIOPV Green Cutting Dust Shroud brings front‑extraction capture to the line of cut, supported by a closed‑top housing and brush‑ring seal. A roller guide stabilizes feed pressure for cleaner, straighter grooves over distance. The flip‑up nose helps you finish to an edge, and quick‑mount hardware speeds setup across common 4‑1/2”–5” grinders. Designed for indoor work where dust control is non‑negotiable, it supports 125 mm blades and typical wall‑chasing depth requirements.
-
Application focus: Straight channel runs, scored lines, and tidy chases in occupied interiors
-
Extraction path: Front extraction at blade entry with closed top and brush‑ring seal
-
Guidance: Roller guide stabilizes tracking to reduce lateral wander
-
Supported blade size: 125 mm (5”) on most 4‑1/2”–5” grinders
-
Typical cutting depth: Approx. 5–30 mm for common chase specs
-
Porting: 35‑EU / 45‑US hose interface noted; durable AS + PP body
-
User advantage: Fast mounting and cleaner indoor workflow thanks to source capture
Why it wins: Front extraction at the nose pulls debris right as the blade bites, maintaining visibility and keeping channels clean for accurate depth and width. The roller guide converts that airflow advantage into straighter runs with less effort, which translates to fewer pass‑backs and patching.
3. HCD55X Twin‑Blade Dust Shroud 125mm Ø55 Bayonet Roller‑Guided
For twin‑blade wall chasing, the HERZO HCD55X runs two 125 mm blades in parallel and captures dust at the source while you open longer, faster grooves for conduit or pipe. The Ø55 bayonet adapter supports a wide grinder range, while the roller‑guided base steadies the tool to maintain groove line and spacing. The AS + PP composite housing balances durability and weight, and the closed design prioritizes containment during heavier, dual‑blade operations.
-
Application focus: Professional wall chasing where two blades speed trenching for services
-
Interface: Ø55 bayonet adapter to support broad grinder compatibility
-
Guidance: Roller‑guided base helps maintain straight runs and consistent groove width
-
Blade setup: Accepts two 125 mm blades in parallel for efficient channel creation
-
Housing: AS + PP composite for impact resistance over extended use
-
Design intent: Source‑level dust capture for dual‑blade workloads
-
Use case: Longer chase runs in concrete or masonry with consistent tracking
Why it wins: On utility chases, speed and consistency dominate. The HCD55X’s roller base and bayonet interface hold line through long pulls, while source capture keeps the trench visible so you avoid over‑cutting and rework.
Quick Side‑by‑Side Comparison of Cutting Dust Shrouds
|
Attribute |
HCT45X Transparent 125mm |
5” Front Extraction Roller Guide |
HCD55X Twin‑Blade Ø55 Bayonet |
|---|---|---|---|
|
Cut type |
Single‑blade scoring and straight cuts |
Single‑blade channels and long straight runs |
Twin‑blade wall chasing for utilities |
|
Extraction path |
Front extraction at blade entry |
Front extraction with closed‑top and brush‑ring |
Source capture during dual‑blade operation |
|
Guidance |
Roller base; clear cover for line view |
Roller guide; closed‑top housing |
Roller‑guided base for long runs |
|
Blade size |
115–125 mm |
125 mm |
Two × 125 mm |
|
Interface |
Adapters for ~40–50 mm tool necks |
35‑EU / 45‑US hose port; quick mount |
Ø55 bayonet adapter |
|
Visibility |
Transparent top cover |
Enclosed top; nose visibility via front capture |
Closed housing; tracking via rollers |
|
Typical depth range |
Tool‑dependent; confirm guard clearance |
Approx. 5–30 mm |
Tool‑dependent; groove width via spacer/blade set |
|
Strengths |
Line visibility; edge approach via flip‑up nose |
Straighter long runs; clean channels |
Fast trenching; consistent dual‑blade spacing |
|
Trade‑offs |
Requires well‑sealed adapter fit for best capture |
Closed top slightly reduces top‑down view |
Heavier and larger; not ideal for short trims |
Buying Guide: Get the Right Cutting Dust Shrouds, Fast
Fitment and grinder size
Start with the grinder class and collar. Cutting dust shrouds must match both blade diameter and the grinder’s neck or guard interface to seat correctly and seal airflow. Verify supported blade sizes (commonly 115–125 mm for 4‑1/2”–5” grinders) and confirm neck/collar compatibility—adapters often cover 40–50 mm ranges, but the best seal happens when the interface matches without play. Loose interfaces leak negative pressure and reduce capture right where you need it.
Extraction path: front vs. perimeter
Front extraction pulls debris at the entry point of the blade. This arrangement typically yields cleaner lines and better visibility during scoring and channeling because plume is evacuated immediately rather than traveling under a perimeter skirt. Perimeter extraction designs can work for general cutting but may allow more dust near the line of cut; if accuracy and cleanliness are priorities, favor front extraction and pair it with a construction‑grade extractor for airflow stability.
Guidance and visibility
Roller guides add a physical reference that reduces lateral drift, especially over long channels or when you must manage cord/hose drag. Transparent upper covers provide continuous visual confirmation of your mark, helping you correct early if the blade begins to walk. Together, these features turn a good shroud into a precision cutting system, minimizing pass‑backs and edge repairs that chew up schedule and abrasives.
Cut type and workload
Single‑blade trims and score lines have very different demands compared with twin‑blade chases. For short, shallow cuts, a clear‑top, front‑extraction shroud with a roller is often the most efficient choice. For utilities that require longer, deeper channels, a twin‑blade shroud accelerates production and keeps groove width consistent. Consider the balance between straightness, visibility, and dust containment required by the job phase.
Mistakes to avoid
-
Ignoring collar/interface compatibility and “making it fit” with tape or shims.
-
Undersizing the vacuum class or filter; clogged filters collapse airflow fast.
-
Forgetting to check line‑of‑cut visibility with the shroud lowered.
-
Running aggressive feed rates that overwhelm extraction and blind your mark.
-
Skipping maintenance on rollers and latches, which causes wobble over time.
FAQ
If you need to see your mark throughout a cut and keep channels clean, choose front extraction—it captures debris right where the blade enters and preserves visibility. Perimeter extraction can manage general dust, but plume may linger near the nose and obscure the line. Pair either style with a construction‑grade extractor featuring automatic filter cleaning to maintain capture velocity over longer pulls.
Some twin‑blade units can physically accept a single blade, but you should follow the product’s instructions on spacers and covers. Ensure all guards close fully and no edge is exposed, then check airflow around the nose to confirm capture isn’t compromised. For best performance, use the shroud type that matches your blade setup; the airflow path in twin‑blade housings is optimized for dual discs.
Small leaks at collars, bayonets, and hose joints reduce negative pressure where it matters most. Inspect seals, replace worn brush rings, and confirm hose size matches the port; adapter stacks introduce losses. Check filter condition and cleaning cycles on the extractor—clogged filters collapse airflow. Finally, moderate your feed rate so extraction can keep up with dust generation.
Use an M‑class or higher construction vacuum designed for mineral fines and silica dust. A unit with automatic filter cleaning maintains stable suction during continuous channeling. Anti‑static hoses and tight, adapter‑free connections help reduce cling and pressure loss. Always follow local regulations and the shroud and vacuum manufacturers’ recommendations for safe operation.
Rollers stabilize the tool’s standoff from the surface and reduce lateral drift that occurs as you adjust body position or route hoses. They also smooth push force, which helps prevent the blade from walking when it enters aggregate. On edge‑following or marked lines, the roller acts like a physical reference, producing straighter channels with fewer corrections.
Approach distance depends on the nose profile and roller placement. Front‑extraction noses may increase line visibility but set a minimum offset from edges; consult the product drawings if your layout demands near‑flush cuts. For tight corners, plan entry and exit angles to avoid over‑cuts and rework.
After each shift, brush out cement fines from the housing and port, then inspect seals, rollers, and latch points. Clean the clear cover on transparent models to preserve line visibility. Check interfaces and adapters for wear that introduces slop and air leaks, and store the tool dry to prevent caking and protect gaskets.
Conclusion
Choosing the right cutting dust shroud starts with the cut you run most and the extraction path that best supports it. The HERZO HCT45X maximizes visibility for precise scoring, the BATIOPV 5” Front Extraction model delivers straighter channels indoors, and the HERZO HCD55X speeds twin‑blade chasing with guided stability. Across all three, the throughline is reliable, source‑level dust capture that keeps marks visible and crews efficient while supporting evolving 2025 silica‑control expectations.
