Introduction
A grinding dust shroud is a simple upgrade that improves surface prep, tool longevity, and jobsite cleanliness—especially when grinding concrete or leveling substrates. In 2025, compatibility is key: the best shroud fits your grinder, seals properly, clears your wheel, and connects reliably to your vacuum system.
Fine silica dust is a serious health hazard, with regulations pushing for effective dust control. The National Institute for Occupational Safety and Health (NIOSH) warns that exposure to respirable crystalline silica can lead to lung diseases like silicosis and lung cancer (NIOSH). This guide helps you choose the best dust shroud for compatibility and performance, focusing on HERZO’s reliable dust shroud kits and grinder shrouds.
Grinding Dust Shroud Fundamentals
What a grinding dust shroud actually does
A grinding dust shroud encloses the grinding wheel area, creating a controlled airflow from the grinding zone to a vacuum. The goal is to maintain negative pressure around the dust plume as the wheel fractures concrete, coatings, or thinset. The skirt or brush edge forms a semi-seal to the floor, while the port pulls dust-laden air toward the vacuum hose. A good shroud provides consistent capture without restricting the wheel's movement or the operator's view.
Why compatibility matters more than “universal fit” claims
“Universal fit” often means “works with some improvisation,” which can lead to poor dust control. True compatibility involves:
-
A secure mounting interface.
-
Proper wheel clearance for your specific cup wheel.
-
A surface seal that matches your application (flat floors, edges, or vertical).
-
A dust-extraction interface that ensures consistent airflow without hassle.
If your work includes transitions (slab to curb, floor to wall), look for edge access features to maintain dust control.
Key parts of a shroud (and how each affects performance)
A dust shroud’s performance is determined by several factors. Material rigidity impacts consistency, skirt/brush design affects seal quality and glide, and port location and diameter influence airflow. Adjustable features, such as height adjustments and quick-release edges, ensure the shroud stays on the tool for optimal dust control throughout the job.
Key Compatibility Considerations
Match Shroud Size to Grinder Guard: 125mm vs 180mm
Compatibility begins with diameter. The most common grinder/shroud pairing problems happen when users try to “make” a 125mm shroud work on a 180mm setup (or vice versa), or when the shroud expects a specific guard style.
Start by confirming your grinder’s guard diameter and the wheel size you plan to run.
-
125mm (5-inch) class: Favors maneuverability—great for smaller rooms, tighter edge work, and lighter correction passes.
-
180mm (7-inch) class: Typically covers more area per pass, which helps on larger slabs and heavier leveling work, but it demands more stable dust control because the dust plume and airflow needs scale up.
Once the size class is correct, verify wheel clearance. Diamond cup wheels can vary: single-row, double-row, turbo, and segmented styles all have different heights and edge profiles. If the cup wheel sits too close to the shroud wall, you’ll feel rubbing, hear chatter, and see heat buildup. If it sits too far away, dust capture suffers because the airflow is no longer tight to the source.

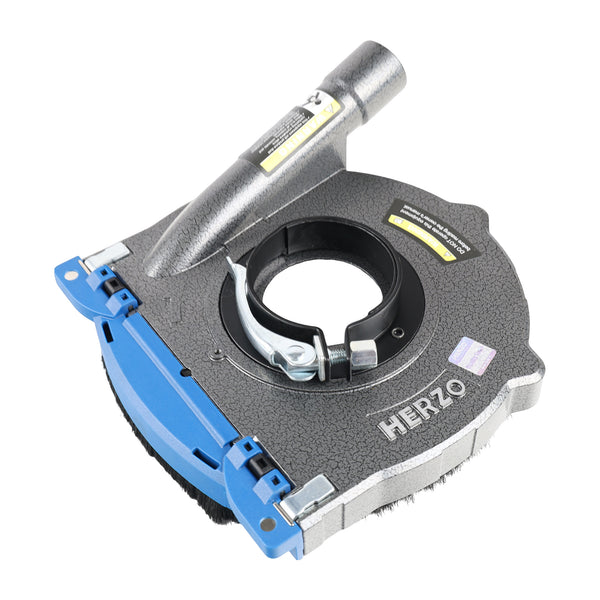

HERZO’s 180mm Aluminum Dust Shroud is built around a rigid metal body that aims to keep geometry stable under load, which helps maintain consistent skirt contact and port alignment on larger grinders. In practice, this rigidity matters most when operators apply uneven pressure near edges or when the floor profile isn’t perfectly flat; a flexible shroud body can deform, opening leak paths where dust escapes.
Build a Dust-Free Grinding Setup for Concrete
A dust-free grinding setup is a system: grinder + shroud + wheel + vacuum + hose management + technique.
Start with the vacuum side, because poor airflow cannot be fixed by any shroud. Use a dust extractor designed for fine concrete dust with an appropriate filter class for your environment, and keep filters clean so suction doesn’t collapse mid-job. Then size the hose for flow and maneuverability; too small can choke airflow, too large can feel stiff and pull the shroud off the surface.
Next, set the shroud height and seal so it “floats” while maintaining contact. A good rule is to aim for steady glide: if you have to push hard just to move, you’ll fatigue quickly and the grinder will gouge. If it slides effortlessly but dust trails behind, the skirt is probably too open or the airflow too low. Make test passes on a sacrificial area, and look for dust escaping at the rear arc (common when hose routing tugs the shroud up) or at the leading edge (common when the skirt is too stiff for a textured slab).
Wheel choice determines dust behavior. A more aggressive cup wheel fractures material faster and can generate a heavier dust load, which means your vacuum and shroud must keep up. For coating removal, dust can include soft gummy particles that smear; in those cases, frequent vacuum checks and proper skirt clearance reduce clogging.
HERZO’s 125mm Aluminum Dust Shroud Kit offers an integrated approach. The pairing matters: the shroud geometry and port are designed to work with a typical 125mm grinder envelope, while a turbo cup wheel profile supports fast material removal for common concrete surface prep tasks. For users who want fewer variables—especially distributors outfitting mixed-experience crews—matching a shroud and wheel as a known combination can reduce trial-and-error.
Edge Grinding and Wall Adjacent Work Without Removing the Shroud
Edge work is where dust control often fails in the real world. Floors meet walls, columns, thresholds, and cabinetry—exactly where customers notice dust the most and where operators are tempted to remove the shroud “for better access.” The compatibility goal in edge grinding is not only “does it fit the grinder,” but “does it let me keep dust collection on while I work within 5–20 mm of a boundary.”
Technique comes first. Approach edges with controlled, shallow passes rather than trying to bite aggressively into the corner. Keep the grinder as flat as possible; tipping increases the gap under the skirt and shoots dust out the open side. If you need closer reach, rotate your body and re-route the hose so the vacuum line doesn’t lever the shroud upward.
Hardware helps. Shrouds designed for practical edge access often include a removable edge segment or a profile that allows a closer approach while still maintaining negative pressure. When you can open a controlled “edge window,” you keep extraction on and limit dust migration compared to running fully exposed.

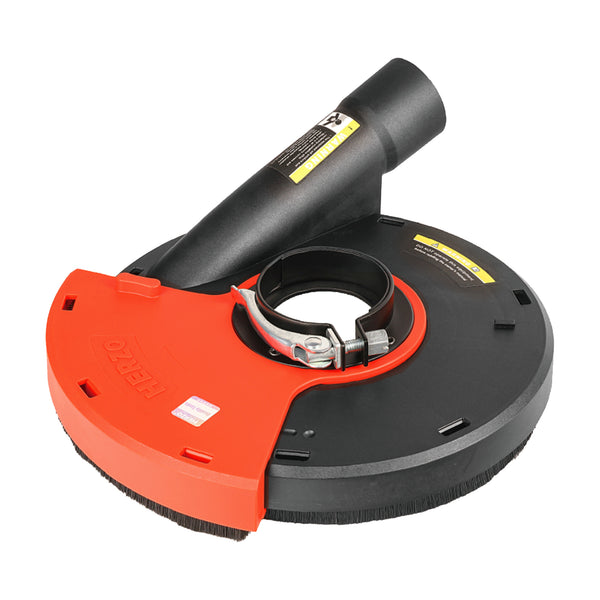

For larger grinders, a robust shroud body helps maintain stability when you’re working off-center near a wall. The HERZO Red Dust Shroud 180mm is a dedicated shroud option in this size class, and the rigid structure is particularly useful when the operator’s pressure shifts during edging. Stability reduces skirt flutter, which is one of the subtle causes of dust escape along the wall line.
Visibility and Control for Precision Grinding and Surface Prep
Precision grinding is about controlling flatness, feathering transitions, and avoiding gouges—especially when you’re prepping for epoxy, overlays, tile, or self-leveling underlayment. The dust shroud affects precision more than most people expect because it influences what you can see and how predictably the tool rides on the surface. If you can’t see the contact patch, you tend to overcorrect and “hunt,” creating waves or low spots.
Visibility is also a safety feature: you can catch wheel chatter, aggregate exposure, and hidden high points before they become defects. When you’re grinding around patched areas, spalls, or repaired cracks, the surface can change hardness quickly, and having a clear view helps you modulate pressure and keep the grinder from grabbing.
Shroud transparency can support this workflow. The HERZO Transparent Grinding Shroud 125mm is aimed at users who want better line-of-sight to the grinding zone while still capturing dust. In practical terms, this can help in detail work such as feathering a floor patch edge, blending grinder swirl marks, or ensuring you’ve fully removed a thin coating without over-grinding the base concrete. Pair it with disciplined technique—slow, overlapping passes and consistent pressure—and you can improve finish quality while keeping dust controlled.
Compatibility Decision Table
|
Your scenario |
Primary compatibility risk |
What to prioritize |
Trade-off to accept |
|---|---|---|---|
|
125mm grinder for apartments/small rooms |
Poor seal due to frequent angle changes |
Light-glide skirt + stable mount + manageable hose routing |
Slightly less enclosure than heavy-duty shrouds |
|
180mm grinder on large slabs |
Shroud flex and leak paths under load |
Rigid body + consistent skirt contact + unclog-prone airflow path |
Less nimble near tight corners |
|
Wall-adjacent edging |
Removing shroud “just to reach” |
Edge-access geometry and stable off-center control |
Slower material removal near boundary |
|
Finish prep for coatings/epoxy |
Over-grinding due to poor visibility |
Clear view of contact patch + smooth glide |
May not be the most rugged option |
|
Mixed materials (thinset/coatings) |
Port clogging and suction drop |
Port design + vacuum maintenance routine + shallow passes |
More frequent checks/cleaning |
Best Practices
Set the shroud to “float,” not clamp
Aim for light skirt contact so the tool glides and the seal stays consistent. Too much downward force increases friction, heats the surface, and encourages operators to tip the grinder—opening gaps that leak dust.
Manage the hose like a control cable
Route the hose so it doesn’t pull the shroud upward or twist it during turns. A small change in hose angle can create a consistent leak path, which looks like “the shroud is bad” but is really a geometry problem.
Use overlapping passes with steady pace
Overlapping by about one-third of the wheel width reduces ridges and keeps the dust plume predictable. Sudden accelerations often cause skirt flutter, especially on uneven slabs.
Keep the extractor performing
Check filters and collection systems regularly, especially during heavy grinding. A strong shroud cannot overcome a clogged filter; you’ll see dust escape and you’ll also load the grinder with abrasive fines.
Do a 30-second test zone before committing
Start each new material or site with a small test pass to confirm seal, wheel clearance, and dust capture. It’s faster to adjust early than to clean up a whole room afterward.
FAQs
A grinder guard is primarily a safety component designed to provide a physical barrier around the wheel, while a dust shroud is designed to capture airborne particles by directing airflow to a vacuum port. A guard alone does not create a controlled negative-pressure zone at the grinding surface. For concrete grinding, the shroud-and-vac system is what turns “messy grinding” into a controllable process.
Compatibility means the shroud mounts securely without wobble, allows full wheel rotation without rubbing, and keeps the skirt contacting the surface during normal use. If the shroud shifts during grinding, the clamp interface likely doesn’t match your guard geometry. If you hear scraping, the wheel profile may be too tall or too close to the shroud wall.
Dust escape usually comes from insufficient airflow, a broken seal at the skirt, or turbulence caused by hose/port geometry. Start by checking vacuum performance—filters and collection bins can reduce suction dramatically as they load. Next, watch the skirt as you move; if it lifts at the rear during turns, the hose is pulling it up.
Choose the size that matches your grinder and the coverage you need. A 125mm setup is usually more maneuverable for small rooms and detailed transitions, while a 180mm setup can cover larger areas faster. The bigger the wheel, the more important rigidity and stable skirt contact become because the dust plume and cutting forces scale up.
Turbo and segmented wheels can remove material quickly but may generate a heavier dust load, requiring strong vacuum airflow. Smoother wheels and lighter passes create less instantaneous dust. Wheel height and profile also affect clearance; if the wheel sits too close to the shroud wall, rubbing and heat will reduce both grinding quality and dust control.
A transparent shroud can improve results when visibility is a limiting factor. Seeing the contact patch helps you feather edges, track overlap, and avoid gouging soft patches. It also helps you notice early signs of chatter and wheel loading before defects spread across the floor.
Use engineered controls first: a properly fitted dust shroud connected to a capable dust extractor, combined with good hose management and filter maintenance. Keep doors and vents managed to avoid pushing dust into occupied areas, and run the vacuum briefly after each pass to clear airborne dust from the hose.
Conclusion
Choosing the best grinding dust shroud for compatibility in 2025 means thinking in systems: grinder size, wheel profile, skirt seal, vacuum airflow, and real jobsite movements all interact. If you match diameter correctly, prioritize stable mounting and airflow, and select features that support your dominant work style—field grinding, edging, or finish prep—you’ll get cleaner air, faster cleanup, and more consistent surface quality. HERZO’s dust-control-first approach fits naturally into this framework: durable structures, optimized airflow, and clear fitment information aimed at verifiable performance.
