Introduction
Concrete grinding and cutting can remove coatings, flatten high spots, and prep surfaces, but it also creates a dense dust cloud that clogs tools and lingers in the air. A good dust shroud is essential to control this mess, as it contains debris while your vacuum pulls it away. This guide helps you choose a dust shroud that fits your grinder and vacuum, ensuring effective dust collection in real-world conditions. You’ll learn about important factors like diameter, interface, airflow, brush design, and edge access, with HERZO dust shrouds as practical examples for heavy-duty work.
Dust Shroud and Vacuum Fundamentals
Grinder compatibility 101: size, guard interface, and wheel clearance
Dust shrouds are not universal in the way many people hope. Compatibility starts with grinder size, typically 125 mm (5 in / 4.5 in class) or 180 mm (7 in class). The shroud needs to match the tool’s guard mounting method—common interfaces include clamp-style collars and quick-fit/bayonet arrangements depending on grinder design. Fitment matters because tiny gaps at the interface can become major leak points once the wheel starts throwing dust.
Wheel clearance is just as important. Grinding cup wheels and cutting discs have different thicknesses, profiles, and working angles. A shroud designed for grinding needs internal volume that allows a diamond cup wheel to run without rubbing, while still keeping the extraction port close enough to maintain airflow. If clearance is too tight, you’ll get rubbing, heat, and premature brush wear; if it’s too open, you lose capture efficiency.
Grinding vs cutting shrouds: why one size/design doesn’t fit all
Grinding produces a broad plume of fine dust plus heavier debris; cutting often produces a narrower stream but can throw material forward and downward. A grinding shroud is usually built around a brush skirt that maintains contact with the surface while allowing lateral movement and slight tilt. A cutting shroud often needs better line-of-cut visibility and geometry that lets the disc approach the work without the skirt snagging.
If you use a grinding shroud for cutting, you may fight visibility and binding; if you use a cutting shroud for grinding, you may have poor sealing around the cup wheel. The best approach is to choose a shroud designed for the task, then match the extraction port to your vacuum hose so the system stays balanced.
Key Compatibility Considerations
Application Module 1: Surface Grinding for Concrete Prep
Surface grinding is the backbone of concrete preparation: removing thinset residue, flattening high spots, opening the surface for coatings, or smoothing patch work. The challenge is that grinding generates very fine dust that spreads across the slab, especially in enclosed rooms where air movement keeps particles suspended. For best results, treat grinding as a controlled system: keep the shroud skirt in light contact with the slab, maintain steady travel speed (don’t hover in one place), and avoid aggressive tilt that lifts one side of the brush ring.
A practical workflow is to “map the room” into lanes, overlap passes by about 25–35%, and pause periodically to check vacuum suction at the shroud. If you see dust trailing behind, it usually means the brush isn’t sealing (worn skirt or uneven slab) or the vacuum airflow is dropping (filter loading, kinked hose, full container). If the grinder is pulling too hard and feels stuck, you may have an overly tight seal; slightly adjust technique so the skirt glides rather than drags.
HERZO’s clear 125 mm class grinding shrouds are useful here because visibility helps you track edge contact and swirl marks as you move. The clear body also makes it easier to spot internal buildup before it becomes a clog. When paired with a diamond turbo cup wheel kit, the setup becomes a straightforward “prep module” for common renovation work—especially in apartments, basements, and other dust-sensitive spaces where cleanup time can rival grinding time.
Application Module 2: Edge and Corner Work Without Losing Suction
Edges and corners expose the limits of many dust shrouds. The moment you bring a grinder close to a wall, you often have to lift or angle the tool, which breaks the perimeter seal and lets dust escape. That is why edge work requires a different mindset: you’re managing both geometry and airflow. Plan edge passes as a separate step, keep the hose routed so it doesn’t pull the grinder away from the wall, and consider whether your shroud design allows partial open-edge grinding without turning the whole skirt into a leak.
A reliable method is to do the field (open floor) first, then approach edges with controlled, shallow passes. If the slab is uneven, avoid forcing the brush to bend sharply; instead, let the grinder float and make two lighter passes. You can also “feather” the last 10–20 mm near the wall so you don’t create a ridge while trying to maintain suction.
HERZO’s universal-style shrouds (including the red housing variant) are built for rugged work where the shroud may get bumped, dragged, and exposed to continuous abrasive debris. For edge work, durability matters because brush rings and housings take direct contact. A sturdier body reduces flex, which helps keep the skirt alignment consistent—one of the overlooked factors in edge dust control.
Application Module 3: Dust-Controlled Cutting for Renovation and Repairs
Cutting channels for plumbing, electrical conduit, or crack chasing is one of the fastest ways to contaminate a worksite with fine dust. Unlike grinding, cutting can eject debris in a concentrated stream—often forward and downward—so the shroud must manage both containment and visibility. The most effective technique is to keep the shroud stable, start the cut gently to establish a kerf, and then maintain a consistent feed rate so the disc doesn’t bind and throw extra dust.
For indoor renovation, it helps to think in layers of control: first contain the dust at the blade with a cutting shroud, then move it efficiently with the vacuum, and finally protect the workspace with simple barriers (doorway plastic, negative-air fan if needed). On the tool side, avoid forcing the disc sideways; side loading increases heat and can deform or wear components that affect how well the shroud seals.

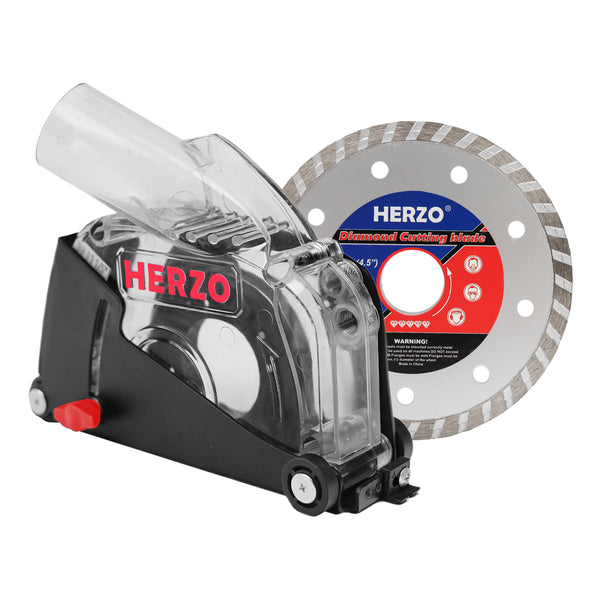

A transparent cutting shroud like the HERZO 125 mm transparent cutting model supports controlled line-of-cut work because you can see where the disc is tracking without lifting the shroud. That matters more than people expect: every time you lift to check alignment, you break the seal and dump dust into the air. With a clear view, you can keep the shroud down, keep suction consistent, and keep cleanup minimal.
Application Module 4: Heavy-Duty 180 mm Grinding for Larger Areas
When you scale up to a 180 mm (7 in) grinder, you’re usually chasing productivity: more coverage per pass, faster coating removal, and better flattening across wider areas. The trade-off is that bigger grinders generate more debris volume, and weak shrouds can flex, crack, or leak under continuous load. Here, selection is less about “will it fit” and more about whether it will remain stable after hours of work.
Technique also changes slightly. Larger grinders have more inertia, so you want smoother direction changes and a steadier stance to keep the brush ring evenly seated. Because you’ll be moving more material, your vacuum must keep up—if airflow drops, dust will escape quickly simply because there’s too much debris for the shroud to contain. A good habit is to check the hose and vacuum filter at set intervals rather than waiting for performance to drop.
HERZO’s 180 mm aluminum dust shroud is designed for this kind of heavy-duty environment. Aluminum construction can help resist deformation and impacts, and it tends to hold alignment better than thinner materials when dragged across uneven slabs. In practical terms, that stability supports more consistent suction around the skirt, which is what you need when you’re trying to keep a large-area grinding job “dust controlled” rather than merely “less dusty.”
Buying Guide: How to Choose the Right Dust Shroud
Match grinder diameter and mounting interface
Start with the non-negotiables: shroud diameter and how it mounts. A 125 mm shroud fits the 4.5–5 in class; 180 mm fits the 7 in class. Confirm if your grinder uses a clamp collar or quick-fit interface. A shroud that sits square without wobble is essential for consistent dust control.
Choose grinding vs cutting designs
Use a grinding shroud for surface prep and leveling (cup wheels). Use a cutting shroud for channels and repair cuts (cutting discs). If you do both, keep two separate shrouds. Transparent housings help reduce "peeking" and seal-breaking in both scenarios.
Validate vacuum and hose compatibility
Ensure your hose seats securely on the extraction port. Keep hoses short and avoid sharp bends. For silica dust, use a vacuum with HEPA filtration and clean filters frequently, as filter loading often limits performance more than the shroud itself.
Pick the brush ring for your surface
Softer brushes conform to uneven slabs; stiff brushes glide on smooth concrete. Consider edge access: some designs allow closer wall work. Check the brush ring for wear regularly—it is the primary seal against the floor.
Quick comparison table
|
Job Scenario |
What Matters Most |
Recommended Shroud Traits |
Common Trade-Off |
|---|---|---|---|
|
Open-floor surface prep |
High capture rate, durability |
Full brush skirt, stable housing, strong airflow path |
Slightly less edge access |
|
Wall-adjacent grinding |
Edge reach + seal control |
Edge-capable skirt design, durable body |
May leak if lifted often |
|
Indoor channel cutting |
Visibility + directional containment |
Transparent cutting cover, stable port position |
Not ideal for cup-wheel grinding |
|
Large-area heavy removal |
Structural rigidity |
Metal/aluminum body, consistent alignment |
Heavier and bulkier |
|
Repeatable straight channels |
Control + guidance |
Roller-guided shroud, consistent tracking |
More specialized setup |
FAQs
A grinding dust shroud is designed to enclose a cup wheel and maintain a perimeter seal while the grinder moves laterally across a surface. A cutting dust shroud prioritizes line-of-cut access and visibility, and it’s shaped to accommodate the approach angle of a cutting disc. Using the wrong one typically leads to poor sealing, binding, or lack of visibility.
Check capture at the brush ring edge: dust should be pulled inward with minimal trailing plume. If dust “streams” out, airflow is likely low due to clogged filters, hose restrictions, or an undersized vacuum. Listen for pitch changes indicating clogs and ensure the hose isn't collapsing under suction.
Dust escape often results from a broken seal (lifting/tilting the grinder), uneven slabs creating gaps under the brush, or low airflow. Leaks at the hose connection or a worn brush ring can also reduce negative pressure inside the shroud. Always keep the skirt flat against the surface.
Choose transparent for visibility-critical tasks like indoor cutting or detailed prep to avoid lifting the tool. Choose metal/aluminum for heavy impacts, long duty cycles, and rough handling. Many pros keep one of each size for different phases of the job.
Replace it when you see uneven wear, gaps, or when bristles are too short to seal on flat sections. Persistent dust streaks despite good suction usually indicate a worn brush. Clean the skirt and avoid excessive tilt to extend its life.
No. Diameter and mounting interfaces differ, and wheel clearance will be incorrect. A shroud must match the grinder class (125mm vs 180mm) to align with the wheel and seal properly. Using the wrong size leads to rubbing, poor capture, and safety risks.
Restore airflow first: clean filters, empty the vacuum, and fix hose kinks. Inspect the brush ring and port for damage or clogs. Adjust your technique to keep the brush in contact with the surface and avoid lifting the shroud to check progress.
Conclusion
Choosing the best dust shroud for your grinder and vacuum comes down to system thinking: match the shroud to your grinder size and task, then ensure your vacuum and hose can maintain airflow under real dust loads. Transparent shrouds improve visibility and reduce “seal breaking,” while heavy-duty housings shine in long grinding sessions where rigidity and durability matter. If you align fitment, airflow, and technique, dust control becomes reliable rather than hopeful—and your jobsite becomes cleaner, healthier, and more efficient with every pass.
